50 Tons Cable Reel Transport Trolley Apply For Steel Plate Handling

Name: 50 Tons Cable Reel Transport Trolley Apply For Steel Plate Handling
Brand: Remarkable
Price: 1 USD

China 50 Tons Cable Reel Transport Trolley Apply For Steel Plate Handling factory

Brand Name : Remarkable

Model Number : KPJ-50T

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, D/A, L/C, D/P, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 45 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

Color : Customized

Application : Industry metallurgy, Material handling/steel coil/industrial

Load capacity : customized

Running speed : 0-20m/min

Size : Customized Size

Power source : cable drum powered

Usage : material transferring

Safety features : Warning alarm and End stop, end stop, Warning alarm

Control model : wireless remote control+hand pendant

Safety facilities : warning light, E-stop

Contact Now

^{50 Tons Cable Reel Transport Trolley Apply For Steel Plate Handling}

^{50 Tons Cable Reel Transport Trolley Apply For Steel Plate Handling,The Customer Of This Project Is A Well-Known Military Industry Enterprise, Mainly Producing Aerospace Products, Manufacturing And Selling Mechanical Products, Designing, Manufacturing, And Selling Non-Standard Equipment. The Device Can Be Operated And Is Powered By Batteries. This Kind Of Injection Mold Transfer Car On Track For Industrial Workshop Handling Is Powered By Battery, The Battery Is Installed In The Cart, And Supply DC Electricity To The Control System, Which Makes The Cart Start, Stop, Go Forward, Back Forward And So On.It Is Consist Of Battery, Motor, Reducer, Cart Frame, Electric Appliance, Etc.}

^{Characters Of 50 Tons Heavy Load Electric Rail Handling Vehicle
· Anti-Explosion
· Anti-High Temperature
· Apply To Various Occasions
· Stable Start, Big Starting Power, Small Impact To The Gear Reducer, Low Voltage, Long Lifetime And So On.
· It Has No Strict Requirement For The Construction Of The Railway.
· No Limit Of Running Hours
· Safe And Convenient Operation For There Is No Wire Outside The Vehicle
· Adjustable Speed}

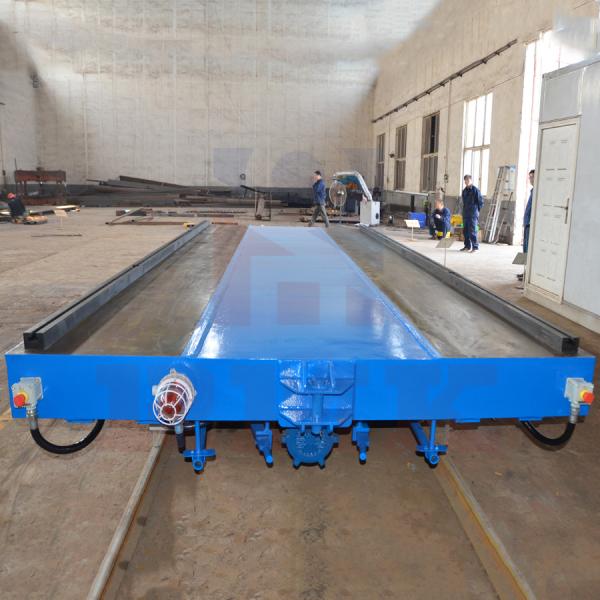

50 Tons Cable Reel Transport Trolley Apply For Steel Plate Handling

^{Technical parameters for Cable reel powered electric transfer carts KPJ series}
^Model		^KPJ-6t	^KPJ-10t	^KPJ-16t	^KPJ-25t	^KPJ-40t	^KPJ-63t	^KPJ-100t	^KPJ-160t	^KPJ-200t
^{Rated load (t)}		⁶	¹⁰	¹⁶	²⁵	⁴⁰	⁶³	¹⁰⁰	¹⁶⁰	²⁰⁰
^{Countertop size}	^Length	³⁶⁰⁰	³⁶⁰⁰	⁴⁰⁰⁰	⁴⁵⁰⁰	⁵⁰⁰⁰	⁵⁶⁰⁰	⁶³⁰⁰	⁸⁰⁰⁰	⁸²⁰⁰
^(mm)	^Width	²⁰⁰⁰	²⁰⁰⁰	²²⁰⁰	²²⁰⁰	²⁵⁰⁰	²⁵⁰⁰	²⁸⁰⁰	²⁸⁰⁰	³⁰⁰⁰
	^Height	⁵⁵⁰	⁵⁵⁰	⁶⁰⁰	⁶⁵⁰	⁷⁰⁰	⁸⁵⁰	⁹⁰⁰	¹¹⁵⁰	¹²⁵⁰
^Speed(m/min)		³⁰	³⁰	³⁰	³⁰	²⁵	²⁵	²⁰	²⁰	¹⁸
^{Wheel base A(mm)}		²⁰⁰⁰	²²⁰⁰	²²⁰⁰	²⁵⁰⁰	²⁸⁰⁰	³²⁰⁰	³⁶⁰⁰	⁵⁰⁰⁰	⁵⁰⁰⁰
^{Track medial distance C(mm)}		¹⁴³⁵	¹⁴³⁵	¹⁴³⁵	¹⁴³⁵	¹⁶³⁵	¹⁷³⁵	¹⁸⁵⁰	²⁰⁰⁰	²⁰⁰⁰
^{Wheel diameter(mm)}		³⁰⁰	³⁰⁰	⁴⁰⁰	⁴⁰⁰	⁵⁰⁰	⁶⁰⁰	⁷⁰⁰	⁷⁰⁰	⁷⁰⁰
^{Bottom clearance(mm)}		⁵⁰	⁵⁰	⁵⁰	⁶⁰	⁶⁰	⁶⁰	⁶⁰	⁷⁰	⁷⁰
^{Motor model / power}		^YZ132M1-6		^YZ132M2-6		^YZ160M1-6	^YZ160M2-6	^YZ160L-6	^YZ160M2-6	^YZ160L-6
^(Kw)		^2.2		^3.7		^5.5	^7.5	¹¹	^2×7.5	^2×11
^{Power mode}	^{Cable drum}	^AC380V		^AC380V					^AC380V
^{Power mode}	^{Cable drum}	^{3×2.5+1×1.5}		^3×4+1×2.5					^3×6+1×4
^{Recommended track model}		^24kg/m		^24kg/m	^38kg/m	^43kg/m		^QU80	^QU100
^{Number of wheels}		⁴							⁸
^{Maximum wheel Pressure (t)}		^1.91	^3.21	^4.87	^7.5	^11.5	^16.9	^27.6	^22.8	^28.5
^{Reference weight (t)}		^3.4	^3.72	^4.2	⁶	^8.5	^11.4	^15.2	^25.5	^31.5
