Cable Drum Powered Rail Transfer Trolley 50 Tons Mold Plant Motorized Battery

Name: Cable Drum Powered Rail Transfer Trolley 50 Tons Mold Plant Motorized Battery
Brand: Remarkable
Price: 1 USD

China Cable Drum Powered Rail Transfer Trolley 50 Tons Mold Plant Motorized Battery factory

Brand Name : Remarkable

Model Number : KPJ-50T

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, D/A, L/C, D/P, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 45 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

Color : Customized

Application : Industry metallurgy, Material handling/steel coil/industrial

Power supply : Cable Drum

Load capacity : customized

Running speed : 0-20m/min

Size : Customized Size

Usage : material transferring

Safety features : Warning alarm and End stop, end stop, Warning alarm

Control model : wireless remote control+hand pendant

Contact Now

Cable Drum Powered Rail Transfer Trolley 50 Tons Mold Plant Motorized Battery

^{Product Superiority----50 Tons Mold Plant Motorized Rail Transfer Trolley

1. This Series Of Flat Cars Has The Advantages Of Safety, Mobility And Flexibility, The Operation Is Not Limited By Distance, The Speed Is Adjustable, The Dc Motor Of Flat Cars Has The Advantages Of Stable Start, Large Start Torque, Small Impact On The Reducer, Low Voltage, Long Service Life And So On.

The Track Laying Requirements Are Not High, Suitable For Use Frequency Is Not High, Long-Distance Transport Occasions.

2. The Transfer Cart Adopts Dc Motor, Suitable For Frequent Use, With Higher Safety And Mobility Flexibility.

It Can Be Equipped With Hard Tooth Surface Reducer To Make The Maintenance Of Flat Car Easier.

3. This Series Of Electric Flat Car Mechanism Is Relatively Simple, Convenient For Maintenance, Easy To Disassemble And Assemble, Strong Bearing Capacity, Long Service Life, Low Requirement For Track Laying, Low Cost, Suitable For Harsh Environment, High-Temperature Environment, And Other Occasions.

4. Transfer Cart Is Suitable For All Kinds Of Environment, Can Work In Indoor, Outdoor, Flammable And Explosive Environment, Can Also Be Added To The Flat Car Hydraulic Device, Buffer Device. Simple Operation, In The Case Of Transport Distance Is Far, Can Be Added On The Flat Car With The Operating Platform, To Meet The Customer Long-Distance Transport, To Achieve A Humanized Design.

5. PLC Control System Can Be Added To The Flat Car, Automatic Rail Car, Greatly Increase The Work Efficiency.}

Technical parameters for Cable reel powered electric transfer carts KPJ series
Model		KPJ-6t	KPJ-10t	KPJ-16t	KPJ-25t	KPJ-40t	KPJ-63t	KPJ-100t	KPJ-160t	KPJ-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
(mm)	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1150	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1635	1735	1850	2000	2000
Wheel diameter(mm)		300	300	400	400	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Motor model / power		YZ132M1-6		YZ132M2-6		YZ160M1-6	YZ160M2-6	YZ160L-6	YZ160M2-6	YZ160L-6
(Kw)		2.2		3.7		5.5	7.5	11	2×7.5	2×11
Power mode	Cable drum	AC380V		AC380V					AC380V
Power mode	Cable drum	3×2.5+1×1.5		3×4+1×2.5					3×6+1×4
Recommended track model		24kg/m		24kg/m	38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5

Cable Drum Powered Rail Transfer Trolley 50 Tons Mold Plant Motorized Battery

Product Tags:

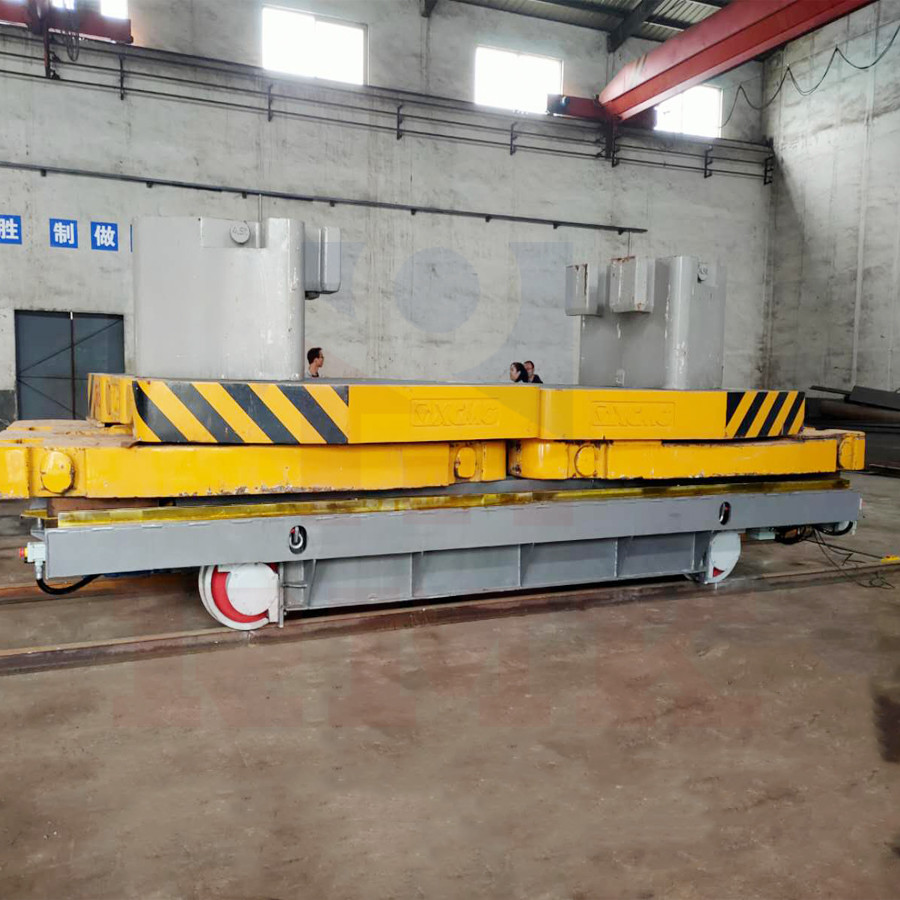

Cable Drum Powered Rail Transfer Trolley 50 Tons Mold Plant Motorized Battery Images
